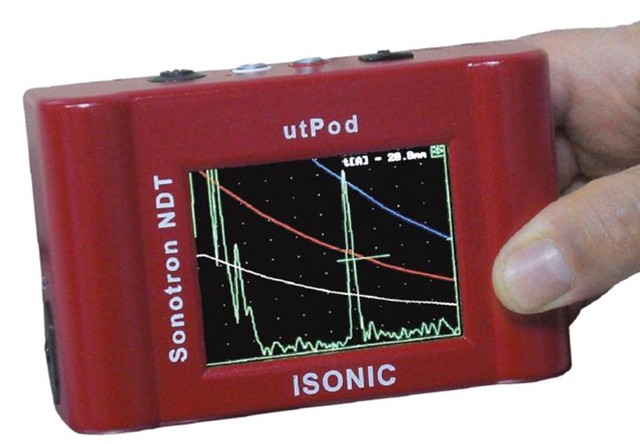

ISONIC utPod

ISONIC utPod

Miniature dimensions and lightest weight ever

ISONIC utPod delivers full functionality of the top performance ultrasonic detector such as:

  • Bi-polar square wave pulser with tunable shape, pulse duration and amplitude (up to 300 V pp) and boosted leading / falling edges enhancing ultrasound penetration for various materials characterized either by high or low grain, sound attenuation, and the like
  • 100 dB analogue gain / 0.2...25 MHz bandpass / 100 MHz sampling rate
  • 32-Taps FIR band pass digital filter with controllable lower and upper frequency limits
  • Analogue performance A-Scan with no range limit for RF display mode
  • Up to 2 kHz pulse repetition frequency
  • Multi-curve DAC, DGS / TCG
  • 2 independent gates
  • Automatic evaluation including trigonometric functions, thickness and curvature correction, etc
  • AWS / API defect evaluation
  • High Color Resolution QVGA screen – 3.2” Active Matrix LCD with an embedded PICASO-GFX2 graphics controller
  • Built-in horn and virtual lamps on the screen to alarm the defect indications
  • 2 on-board rechargeable long durability Li-Ion batteries
